Temperature Transmitters
With the thorough knowledge of the industry, we are involved in supplying of Temperature Transmitter. The product range offered by us includes ATX Block Universal Temperature Transmitter, Humidity and Temperature Transmitter, and more.These are developed using quality-assured raw material and components, which is sourced from trusted vendors of the market. Before delivering these products to the patrons, our quality analyzers thoroughly examine

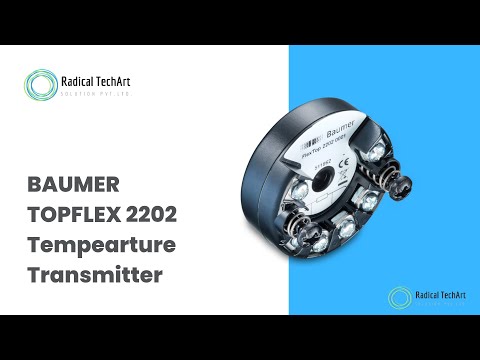

Baumer make Hart Type Tempearture Transmitter FLEXTOP 2222.0001
Product Details:
| Minimum Order Quantity | 5 Piece |
| Sensor Type | RTD |
| Usage/Application | Temperature Measurement |
| Model Name/Number | FLEXTOP2222 |
| Brand | BAUMER |
| Voltage | 24VDC |
| Input | Universal |
| Connection variants | 2-wire ,3-wire, 4-wire |
| Measuring unit | DegreeC , DegreeF, K |
| Min. measuring span | 10 Deg C |
| Type | Head Mouted |
Callback
Head Mounted Temperature Transmitters
Product Details:
| Minimum Order Quantity | 5 Piece |
| Output Signal | 4~20 mA |
| Output Value | 4..20 mA |
| Brand | Baumer |
| Input Value | RTD |
| Accuracy | 0.25 % F.S. |
| Mounting | Head Mounted |
| Model | FlexTop 2202 / FlexTop 2203 |
Specifications:
- Input : PT-100, 2- , 3-, 4 -Wire ( 2202) & T/C (2203)
- Supply : 10.30 VDC
- Output : 4.20 mA, 2 Wire
- Measuring Range : -200- 1820 Deg C
- Operating Temp. : -40 to 85 Deg C
Callback
Radix Temperature Transmitter
Product Details:
| Minimum Order Quantity | 1 Piece |
| Input Type | RTD |
| Sensor Type | RTD |
| Output Signal | 4–20 mA |
| Mounting Type | Head Mount |
| Sensor Input | Pt100 |
| Measuring Range | 0–200°C |
| Isolation | Non Isolated |
| Usage/Application | For Measuring Temp |
| Model Name/Number | TX1HM |
| Brand | Radix |
Callback

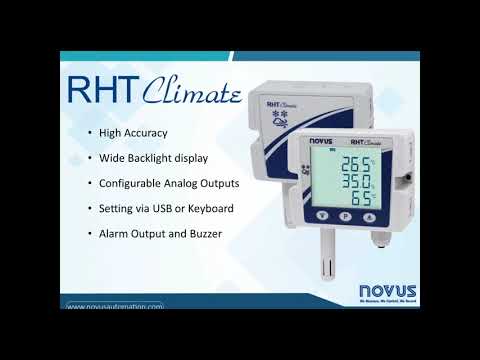

Humidity And Temperature Transmitter
Product Details:
| Minimum Order Quantity | 1 Piece |
| Output Signal | RS485 |
| Usage/Application | Pharma |
| Model Name/Number | RHT-DM |
| Brand | Novus, Dwyer |
| Voltage | 24VDC |
| Accuracy | 2% RH |
| Dimensions | 90 x 60 x 36 mm |
| Working Temperature | 10 - 65 Degree Celcius |
Our organization is engaged in manufacturing and supplying a comprehensive array of Humidity and Temperature Transmitter. The offered range of transmitters is manufactured by an experienced team of professionals by employing contemporary machines and techniques. All our products are highly appreciated and demanded by the clients, owing to their attributes like excellent performance, robust construction, durability and easy installation. Moreover, we also offer our entire assortment of customized range, at market-leading prices.
Features:
- Suitable for HVAC application
- Measure Relative Humidity from
- 0 to 100 % without condensation
- Supply: 12 to 30 VDC
- Output: Dual 4 – 20 mA loop
- Powered signals
- IP65 Protected ABS Enclosure
- Range: Programmable in 0 – 100%
Callback
Head Mounted Temperature Transmitters 2203
Product Details:
| Minimum Order Quantity | 5 Piece |
| Input Types | Temperature |
| Output Signal | 4~20 mA |
| Power Source | 24VDC |
| IP Rating | IP65 |
| Accuracy | 0.2 % |
| Range | Programmable |
| Type | Head mounted |
- Baumer make Temperature Transmitter,
- Model : FLEXTOP-2203,
- Input: Thermocouple ALL Type,
- Range : Programmable,
- Supply : 24 VDC,
- Output : 4....20 mA,
- Mounting : Head Mounted Type
Callback
