Proximity & Ultrasonic Sensors

Our product range includes a wide range of baumer ultrasonic proximity sensor, 70-1000 mm, ultrasonic sensor, proximity senors, ultrasonic sensor- cylindrical type, ultrasonic sensor-cylindrical type and photoelectric sensor (optical sensor).

Baumer Ultrasonic Proximity Sensor, 70-1000 Mm

Baumer Ultrasonic Proximity Sensor, 70-1000 Mm
  • Baumer Ultrasonic Proximity Sensor, 70-1000 Mm
  • Baumer Ultrasonic Proximity Sensor, 70-1000 Mm
  • Baumer Ultrasonic Proximity Sensor, 70-1000 Mm
  • Baumer Ultrasonic Proximity Sensor, 70-1000 Mm
Get Best Quote
Approx. Price: Rs 10,000 / PieceGet Latest Price
Product Brochure

Product Details:

BrandBaumer
Part NumberU500.DA0.2-11200629
Sensing Distance70-1000 mm
Supply Voltages12 to 30 V DC
Connection TypeConnector M12
Body MaterialPlastic
Body StyleRectangular
Degree of ProtectionIP67
Operating Temperature-25 to 65 Deg C
storage temperature-40 to 75 Deg C
Output Voltage0 - 10 V
Coating active facePEEK
Residual ripple< 10 % Vs
reverse polarity protectionyes, Vs to GND
resolution< 0,3 mm

Baumer make Ultrasonic Sensor
Model: U500.DA0.2-11200629
Sensing Range: 70....1000 mm
Supply Voltage: 12...30 VDC
Output: 0.....10 VDC
Protection Class: IP67
Request
Callback


Additional Information:

  • Delivery Time: Ex-stock
Yes! I am Interested

Ultrasonic Sensor

Ultrasonic Sensor
  • Ultrasonic Sensor
Get Best Quote
Approx. Price: Rs 7,500 / PieceGet Latest Price
Product Brochure

Product Details:

BrandBaumer
Part NumberU500.DA0.2-11200629
Sensing Distance70-1000 mm
Supply Voltages12 to 30 V DC
Connection TypeConnector M12
Body MaterialPlastic
Degree of ProtectionIP67
Operating Temperature-25 to 65 Deg C

Baumer make Ultrasonic Sensor
Model: U500.DA0.2-11200630
Sensing Range: 70....1000 mm
Supply Voltage: 12...30 VDC
Output: 4....20 mA
Protection Class: IP67
Request
Callback


Additional Information:

  • Delivery Time: Ex-stock
Yes! I am Interested

Proximity Senors

Proximity Senors
  • Proximity Senors
Get Best Quote
Approx. Price: Rs 750 / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
BrandBaumer
TypeM-5,M-8,M-12,M-18,M-30
OutputPNP,NPN
Sensing Distance2mm,8mm,18mm
SeriesIGYX
ModelIGYX12P17B3/L
Electrical Connection3 -Wire,with Meter Cable Or M-12,P-Pin Connector
Cable ConnectorCustomized

Baumer Make Inductive proximity switchesThe proven solution for safe, non-contact detection of metal objects
  • Very small sensors with all integrated evaluation electronics and large sensing distance
  • Sturdy, maintenance-free and durable
  • Millions of them in use - highest precision and guaranteed reliability thanks to over 40 years of experience
Request
Callback
Yes! I am Interested

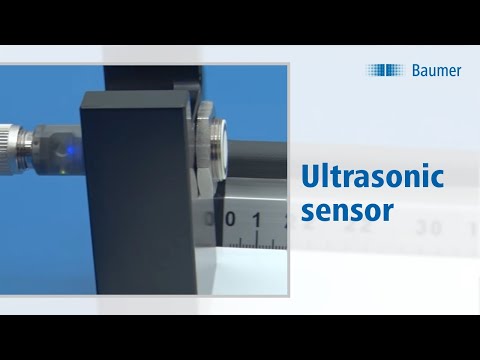

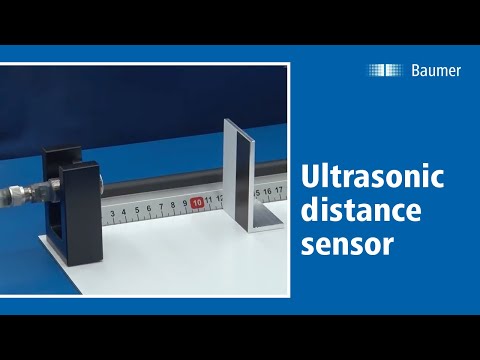

Ultrasonic Sensor- Cylindrical Type

Ultrasonic Sensor- Cylindrical Type
  • Ultrasonic Sensor- Cylindrical Type
  • Ultrasonic Sensor- Cylindrical Type
Get Best Quote
Approx. Price: Rs 9,000 / PieceGet Latest Price
Product Brochure

Product Details:

BrandBaumer
Sensor TypeUltrasonic
MaterialStainless Steel
Model Name/NumberUR18.DAO.2-11200642
Product TypeDistance Measurement
Connector Typeconnector M12 5 pin
Usage/ApplicationIndustrial
Voltage12...30 VDC
ColorSilver

Baumer make Ultrasonioc Distance measuring sensor
Model: UR18.DAO.2-11200642
Type: Cylindrical
Sensing Range: 70.....1000 mm
Output: 4....20 mA
Supply: 12...30 VDC
Request
Callback


Additional Information:

  • Delivery Time: Ex-stock
Yes! I am Interested

Ultrasonic Sensor-Cylindrical Type

Ultrasonic Sensor-Cylindrical Type
  • Ultrasonic Sensor-Cylindrical Type
  • Ultrasonic Sensor-Cylindrical Type
Get Best Quote
Approx. Price: Rs 9,000 / PieceGet Latest Price
Product Brochure

Product Details:

BrandBaumer
Sensor TypeUltrasonic
MaterialPlastic, Stainless Steel
Model Name/NumberUR18.DA0.2-11200641, U500.DA0.2-11200629
Product TypeDistance Measurement
Connector TypeM12, 5 Pin, connector M12 5 pin
Usage/ApplicationIndustrial
Voltage12...30 VDC
ColorBlack, Silver
ShapeRectangular
Frequency200 KHZ
Protection DegreeIP 67

Baumer make Ultrasonioc Distance measuring sensor
Model: UR18.DAO.2-11200641
Type: Cylindrical
Sensing Range: 70.....1000 mm
Output: 0...10 VDC
Supply: 12...30 VDC

Request
Callback


Additional Information:

  • Delivery Time: Ex-stock
Yes! I am Interested

Photoelectric Sensor (Optical Sensor)

Photoelectric Sensor (Optical Sensor)
  • Photoelectric Sensor (Optical Sensor)
  • Photoelectric Sensor (Optical Sensor)
  • Photoelectric Sensor (Optical Sensor)
  • Photoelectric Sensor (Optical Sensor)
Get Best Quote
Approx. Price: Rs 2,700 / NumberGet Latest Price
Product Brochure

Product Details:

Minimum Order Quantity1 Number
TypeDiffuse Sensor
Usage/ApplicationObjection Detection/Counting
ColorBlack
BrandBaumer
MaterialPlatic
Cable Length2 Mtr
Detecting MethodPhotoelectric

Photoelectric Sensor with background suppression

Model : O300.GR.11110414

Light source : Pulse red LED
Sensing distance : 30...300 mm(Available in 200/4000/5000 mm also
)
Power indication : Green LED
Switch indication : Yellow LED
dist.adjustement : qTeach

Electrical data

Response time : <1 ms
Voltage supply : 10....30 VDC
O/P function : Light/Dark Operate
Output : Push-Pull
s/c protection : Yes

Type : Rectangular
Housing material : Plastic
connection : M-8 , 4 pin connection

Operating temp : -25 to 65 deg.c
Request
Callback


Additional Information:

  • Delivery Time: Ex-stock
Yes! I am Interested

Inductive Proximity Switches

Inductive Proximity Switches
  • Inductive Proximity Switches
  • Inductive Proximity Switches
  • Inductive Proximity Switches
Get Best Quote
Approx. Price: Rs 650 / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Switch TypeInductive
BrandBaumer
ShapeCylindrical
Size8mm/12mm/18mm/30mm
MaterialSS
Model No.IGYX
Cable Length2 mtr
Sensing Objectmetallic
Power Supply24 VDC
Sensing Distance2mm/4mm/8mm/15mm

Baumer Make Inductive proximity switchesModel : IGYX Series
The proven solution for safe, non-contact detection of metal objects
  • Very small sensors with all integrated evaluation electronics and large sensing distance
  • Sturdy, maintenance-free and durable
  • Millions of them in use - highest precision and guaranteed reliability thanks to over 40 years of experience
  • Proximity Switches
  • Type : M-4, M-5, M-6, M-8, M-12, M-18, M-30
  • Output : PNP-NO, PNP-NC, NPN-NO, NPN-NC
  • Cable Version, Connector Version
Request
Callback


Additional Information:

  • Delivery Time: Ex-Stock
Yes! I am Interested
