Thermocouples And RTD Sensors
Pioneers in the industry, we offer rtd pt100 temperature sensor, radix make rtd sensor, radix flameproof rtd sensor, k type thermocouple sensor, k type thermocouple temperature sensor and k typetemperature thermocouple sensor from India.
RTD PT100 Temperature Sensor
Get Best Quote
Approx. Price: Rs 1,000 / PieceGet Latest Price Product Brochure
Product Details:
| Accuracy | Class B |
| Sensor Connection Wiring | 3 Wire |
| Temperature Range | -40 to 450 deg C |
| Application | Industrial |
| Termination Type | Terminal Head Assembly |
| Probe Material | Stainless Steel |
| Process Connection Type | Flanged |
| Cable Length | 2 m |
| Probe Diameter | 0.5 - 8 mm |
| Sensor Configuration | Duplex |
We are among the distinguished organizations engaged in the manufacturing, supplying and exporting the quality range of RTD PT100 Temperature Sensor.
The offered product is developed by our experts in adherence to the established standards of the industry.
Our experienced professionals use the latest technology and quality-approved components procured from the trusted vendors of the market.
Owing to features like excellent performance, robust construction, corrosion resistance and longer lifespan, these sensors are highly applauded and demanded by the clients across the region.
Technical Specifications:
- Accuracy: Thermistor temperature sensor:±0.22???C@25???C(±0.4???F@77???F), RTD temperature sensor: DIN class A:±0.15???C@0???C(±0.28???F@32???F)
- Temperature Limits: Operating: -40 to 302???F(-40 to 150???C)
- Cable Rating: Plenum option includes UL listed plenum cable.
- Agency Approvals: Meets the technical requirement of EU Directive 2011/65/EU
Request
Callback
Callback
Yes! I am interested

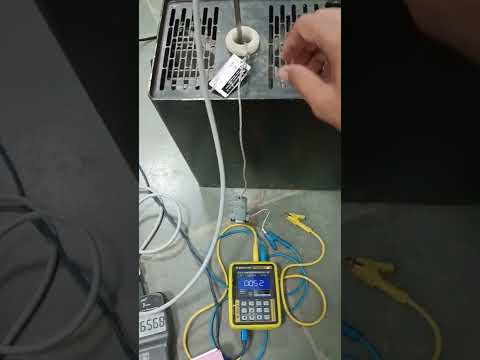

Radix Make RTD Sensor
Get Best Quote
Approx. Price: Rs 2,000 / PieceGet Latest Price Product Brochure
Product Details:
| Minimum Order Quantity | 5 Piece |
| RTD Element Material | Platinum |
| Accuracy | Class A |
| Sensor Connection Wiring | 3 Wire |
| Temperature Range | -200 to 600 deg C |
| Probe Length | 150 - 300 mm |
| Application | Industrial |
| Termination Type | Terminal Head Assembly |
| Process Connection Type | Threaded (NPT/BPT) |
| Probe Material | Aluminium |
| Probe Diameter | 8 - 20 mm |
RTDs - or Resistance Temperature Detectors - are temperature sensors that contain a resistor that changes resistance value as its temperature changes. The most popular RTD is the Pt100. They have been used for many years to measure temperature in laboratory and industrial processes, and have developed a reputation for accuracy, repeatability, and stability.
Most RTD elements consist of a length of fine coiled wire wrapped around a ceramic or glass core. The element is usually quite fragile, so it is often placed inside a sheathed probe to protect it. The RTD element is made from a pure material whose resistance at various temperatures has been documented. The material has a predictable change in resistance as the temperature changes; it is this predictable change that is used to determine temperature.
Most RTD elements consist of a length of fine coiled wire wrapped around a ceramic or glass core. The element is usually quite fragile, so it is often placed inside a sheathed probe to protect it. The RTD element is made from a pure material whose resistance at various temperatures has been documented. The material has a predictable change in resistance as the temperature changes; it is this predictable change that is used to determine temperature.
- Radix make RTD sensor,
- Type- PT100/PT1000(Simplex/Duplex)
- Head - WeaterprooF/Flameproof/ autoclave
- Stem MOC SS-316
- Procc.conn. Adjsutable ferrul fiitting/ Tri clover/ Flange.
Request
Callback
Callback
Yes! I am interested

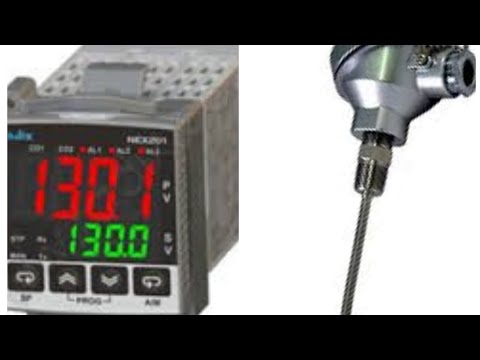

Radix Flameproof RTD Sensor
Get Best Quote
Approx. Price: Rs 2,200 / PieceGet Latest Price Product Brochure
Product Details:
| Minimum Order Quantity | 5 Piece |
| Element type | PT100 |
| Sheath diameter | 6 mm |
| Sensor Connection Wiring | 3 Wire |
| Probe material | SS316 |
| Connection type | Terminal head |
| RTD Element Material | Platinum |
| Temperature Range | -50 to 250 deg C |
| Accuracy | Class B |
| Probe Length | 150 - 300 mm |
| Application | Industrial |
- PT100, 3W, SX, A,
- 6 x LENGTH,
- SS316L,
- -50 to 250 Deg C,
- FLP Head
- 1/2"BSPM fitting
Request
Callback
Callback
Yes! I am interested
K Type Thermocouple Sensor
Get Best Quote
Approx. Price: Rs 1,000 / PieceGet Latest Price Product Brochure
Product Details:
| Class | Class 2 |
| Temperature Range | 0 to 1250 deg C |
| Accuracy | +/- 2.5 deg C or +/- 0.75%) |
| Probe Material | Stainless Steel |
| Application | Industrial |
| Assembly | Thermocouple Head Assembly |
| Mount | Flange |
| Probe Termination | Head Assembly |
We deal in world class K Type Thermocouple Sensor with the best quality thermocouple
Specifications:
- Temperature Operating Limits: -40 to 302 Deg F(-40 to 150 Deg C)
- Cable Rating: Plenum option includes UL listed plenum cable.
- Agency Approvals: Meets the technical requirement of EU Directive 2011/65/EU
- Accuracy: Thermistor temperature sensor:±0.22 Deg C@25 Deg C(±0.4 Deg F@77 Deg F), RTD temperature sensor: DIN class A:±0.15 Deg C@0 Deg C(±0.28 Deg F@32 Deg F
Request
Callback
Callback
Yes! I am interested
K Type Thermocouple Temperature Sensor
Get Best Quote
Approx. Price: Rs 1,000 / PieceGet Latest Price Product Brochure
Product Details:
| Thermocouple type | K type |
| Sheath material | SS316 |
| Temperature range | 0 to 800 C |
| Probe length | 100 mm |
| Probe diameter | 6 mm |
| Insulation | PTFE |
| Junction type | Grounded |
| Accuracy class | Class 1 |
| Cable length | 5 m |
| Termination | Compensating cable |
Mineral insulated cable.
Spring loaded design for positive contact with thermowell
Available in various connections & sheath diameters
Enclosures (Head)
Weatherproof IP - 67
Flameproof Gr. lIA, llBExplosion proof lIA, llB, IICTransmitter output 4 - 20 mA (Optional)Reference standard : IEC - 584.2 / ANSI MC - 96.1
Spring loaded design for positive contact with thermowell
Available in various connections & sheath diameters
Enclosures (Head)
Weatherproof IP - 67
Flameproof Gr. lIA, llBExplosion proof lIA, llB, IICTransmitter output 4 - 20 mA (Optional)Reference standard : IEC - 584.2 / ANSI MC - 96.1
Request
Callback
Callback
Yes! I am interested
K TypeTemperature Thermocouple Sensor
Get Best Quote
Approx. Price: Rs 1,000 / PieceGet Latest Price Product Brochure
Product Details:
| Class | Class 2 |
| Accuracy | +/- 1.5 deg C or +/- 0.25% |
| Probe Material | Stainless Steel |
| Temperature Range | 0 to 1300 deg C |
| Application | Industrial |
| Assembly | Thermocouple Head Assembly |
| Mount | Flange |
| Probe Termination | Head Assembly |
| Country of Origin | Made in India |
Mineral insulated cable.
Spring loaded design for positive contact with thermowell
Available in various connections & sheath diameters
Enclosures (Head)
Weatherproof IP - 67
Flameproof Gr. lIA, llBExplosion proof lIA, llB, IICTransmitter output 4 - 20 mA (Optional)Reference standard : IEC - 584.2 / ANSI MC - 96.1
Spring loaded design for positive contact with thermowell
Available in various connections & sheath diameters
Enclosures (Head)
Weatherproof IP - 67
Flameproof Gr. lIA, llBExplosion proof lIA, llB, IICTransmitter output 4 - 20 mA (Optional)Reference standard : IEC - 584.2 / ANSI MC - 96.1
Request
Callback
Callback
Yes! I am interested
J Type Thermocouple Sensor
Get Best Quote
Approx. Price: Rs 1,000 / PieceGet Latest Price Product Brochure
Product Details:
| Class | Class 2 |
| Accuracy | +/- 2.5 deg C or +/- 0.75%) |
| Probe Material | Stainless Steel |
| Temperature Range | 0 to 750 deg C |
| Application | Industrial |
| Assembly | Thermocouple Head Assembly |
| Mount | Flange |
| Probe Termination | Head Assembly |
| Country of Origin | Made in India |
We are a leading supplier of J type thermocouple sensor with the most premium quality
Technical Specifications:
- Accuracy: Thermistor temperature sensor:±0.22 C@25 C(±0.4 F@77 F), RTD temperature sensor: DIN class A:±0.15 C@0 C(±0.28 F@32 F)
- Temperature Limits: Operating: -40 to 302 F(-40 to 150 C)
- Cable Rating: Plenum option includes UL listed plenum cable.
- Agency Approvals: Meets the technical requirement of EU Directive 2011/65/EU
Request
Callback
Callback
Yes! I am interested
RTD PT1000 Temperature Sensor
Get Best Quote
Approx. Price: Rs 1,000 / PieceGet Latest Price Product Brochure
Product Details:
| Wire Type | 2 Wire |
| Accuracy | Class B |
| Temperature Range | -40 to 450 deg C |
| Application | Industrial |
| Termination Type | Terminal Head Assembly |
| Process Connection Type | Flanged |
| Probe Material | Stainless Steel |
| Housing Rating | NEMA 4X ( IP66,DFW,IBW only ) |
| Housing Material | Meets UL,94 V-O poly-carbonate plastic. |
We are engaged in offering RTD PT1000 Temperature Sensor to our clients. Our range of products is appreciated by our clients.
Specifications:
- Accuracy: Thermistor temperature sensor:±0.22???C@25???C(±0.4???F@77???F), RTD temperature sensor: DIN class A:±0.15???C@0???C(±0.28???F@32???F)
- Temperature Limits: Operating: -40 to 302???F(-40 to 150???C)
- Cable Rating: Plenum option includes UL listed plenum cable.
- Agency Approvals: Meets the technical requirement of EU Directive 2011/65/EU
